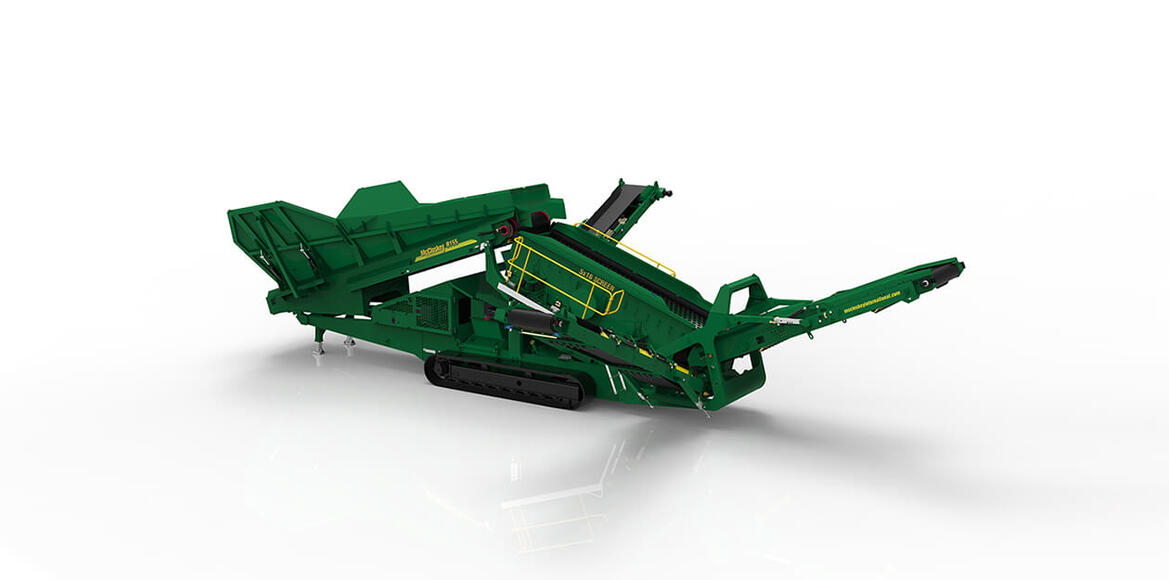

Technical data R155 scalper

Engine* 98 kW (130 HP)
Screenbox Top Deck 4.880m (16') x 1.525m (5')
Screenbox Bottom Deck 4.575m (15') x 1.525m (5')
Feed Conveyor Belt Width 1400mm (55")
Stockpile Height - Tail Conveyor 2.77m (9'-1") - 3.75m (12'-3")
Stockpile Height - Fine Product Side Conveyor 3.47m (11'-5") - 3.96m (13')
Stockpile Height - Mid Product Side Conveyor 2.51m (8'-3") - 3.60m (11'-10")

One of the most versatile in the R Series screeners, the R155 High Energy Screener is available in several configurations including Dual Power, and is a tough, robust screening tool designed to cope with the heaviest of applications. With the ability to handle some of the worst, untreated construction and demolition waste, the R155 can minimize material pre-handling and provide clean end products.

The R155 has proven to be extremely effective across a wide range of applications. With a screening area of 155 ft² across the High Energy Screenbox – the largest in its class – the R155 has impressed operators across applications like site reclamation, construction and demolition waste, working with difficult materials such as heavy rock, sticky clay and fines, and boulder clay.

Available Models:

  • Standard
  • Dual Power
  • Long Hopper
  • Low Profile, Direct Feed

Features

  • Dual Power available
  • 4880mm x 1525mm (16' x 5') high energy 2 bearing screenbox
  • Large open engine bay
  • Oversized heavy duty belt as standard
  • Direct feed Hardox® hopper
  • Screen raises for easy access to bottom deck
  • Track mobile
